CSPRC032 is same as SWT-CSP-S Semiconwell manufactures passive network components, integrated active and passive devices, resistor networks, capacitor networks, schottky and zener diode networks, and npn, pnp transistors arrays that perform the following functions: series and parallel linear and nonlinear GTL, AC, Diode, Thevenin termination networks, precision thin film resistor capacitor networks (RC networks), isolated, bussed resistor networks including zero ohms jumper arrays, voltage divider networks, resistor networks for audio applications, EMI, RFI and ESD zener clamped diodes and transient voltage suppressors networks, EMI/RFI filter networks and clock terminations. Semiconwell's proprietary semiconductor technology, advanced thin films processes, in house assembly and packaging technologies allow manufacturing of flip chip CSP chip scale and MLF molded lead frame surface mount integrated passive networks that include unprecedented large capacitors >1microfarad (1µF) and giga ohms resistors (GW). Generic Edit Space SEMICONWELL PRODUCTS AVAILABLE IN CHIP SCALE PACKAGE (CSP) SEMICONWELL PRODUCTS AVAILABLE IN CHIP SCALE PACKAGE SWT-CSP-S, T FILTER, EMI/RFI T-FILTER CHIP SCALE SILICON SWT-CSP-Q, T FILTER, EMI/RFI T-FILTER CHIP SCALE QUARTZ SWTF-CSP-S, TAPPED EMI/RFI FILTERS, CHIP SCALE SILICON SWTF-CSP-Q, TAPPED EMI/RFI FILTERS, CHIP SCALE QUARTZ SWT-CSP-C, T FILTER, EMI/RFI T-FILTER CHIP SCALE CERAMIC SWTVS-CSP TRANSIENT VOLTAGE SUPRESSORS CHIP SCALE SWTF-CSP-C, TAPPED EMI/RFI FILTERS, CHIP SCALE CERAMIC SWRG-CSP GTL/ECL TERMINATION CHIP SCALE CERAMIC SWPIESD-CSP CRC ESD PROTECTED PI FILTERS CHIP SCALE SEMICONWELL PRODUCTS AVAILABLE IN CHIP SCALE PACKAGE



SEMICONWELL
Integrated Passive Networks
  Tapped EMI/RFI Filters, CHIP SCALE SILICON
SWT-CSP-S



FEATURES
APPLICATIONS
SCHEMATIC
Minimal cross-talk
4 Filter lines per devices.
Ultra small foot print.
Silicon substrate.
0.35 mm Eutectic Solder Bumps.
0.5mm Pitch
Cellular Phones
Cordless Phones
Internet Appliance
PDAs
Laptop Computers
schematic

SHORT PRODUCT APPLICATION NOTE
Many portable applications frequentely demand filtering of signals in the 800-2,700 MHz band. Semiconwell's thin film Flip Chip filters provide a minimum of -30dB of attenuation over this frequency band. The bump size and pitch of these filters are selected such that the device can be placed directly on a FR4 printed circuit board using conventional assembly techniques. Ground-bounce and cross-talk are minimum via a die design that provides two solder bump contacts to the common suply connection. The solder bumps are a 63/37 Sn/Pb alloy and are nominally 0.35 mm in diameter.

SEMICONDUCTOR-THIN FILM MANUFACTURING PROCESS DESCRIPTION
Integrated passive networks are manufactured using advanced thin film technologies including ultra -stable and self passivating Tantalum Nitride resistors, gold interconnect metallization and reliable MNOS capacitors to achieve excellent uniformity, performance and reliability. Thin film resistor technology is the preferred solution for all applications that require low noise, long term stability and excellent performance at very high frequencies. Semiconwell employs proprietary thin film technologies for deposition of a wide range of sheet resistance films from 1 W/sq to 10,000 W/sq. All Semiconwell's products are available in die form and as KGD, known good die and are ideal for high reliability hybrid and multi chip module applications. Besides thin film resistors, Semiconwell integrates capacitors, Schottky diodes, Zener diodes and transistors. Integrated passive and active networks are manufactured using Semiconwell's in house high reliability semiconductor manufacturing processes. All semiconductor devices employ precision doping via ion implantation, silicon nitride junction passivation, platinum silicided contacts and gold interconnect metallization for best performance and reliability. MNOS capacitors and Tantalum Nitride resistors are easily integrated with Schottky diodes to provide complete standard and custom RCD solutions. In die form, these products are ideal for hybrid and multi chip module applications. In packaged form, these products are the best solution where space and weight are a concern.

RESISTOR SPECIFICATIONS
Capacitance [pF] Tolerance q [%] Power Rating [mW]
<5pF 1, 5, 10 25 mW@70°C

Stresses beyond listed absolute maximum ratings may cause permanent damage to the device.

ELECTRICAL CHARACTERISTICS
PARAMETER VALUE UNITS
Resistor
50 ;100
W
Absolute Tolerance, R
±10
%
Capacitor
43 ;39
pF
Absolute Tplerance, C
±20
%
TCR of Resistor
±100
ppm
Operating Temperature range
-40 to +85
°C
Leakage Current@±6V
max.1
mA
Power Rating/Resistor
25
mW
Fc with 0W Source impedance and infinite Load impedance,R=100W,C=39pF
40
MHz
Fc with 0W Source impedance and infinite Load impedance,R=50W,C=43pF
74
MHz
Fc with 50W Source impedaFc with 50W Load impedance,R=100W,C=39pF
109
MHz
Fc with 50W Source impedaFc with 50W Load impedance,R=50W,C=43pF
74
MHz

GENERAL DIE INFORMATION
Substrate Thickness (mils) Die size (mils) Bonding pads
Si / Silicon 15±2 98 x 40 ±3 pure tin Sn or SnPb solder
All Semiconwell products are available in die form for chip and wire hybrid circuits and multi chip modules applications. Typical delivery for standard die products is 3-4 weeks ARO. For Chip Scale Packaged (CSP) devices consult factory for an update on availability of certain products.

CONDUCTORS RESISTORS BACKSIDE METAL
pure tin Sn or SnPb solder, 350µm diameter bumps, 262µm height Resistive material is ultra stable TaN with low TCR <75ppm/C typical. For Rsq<10W/sq and Rsq>500W/sq, the resistive material is proprietary. Power rating/resistor max 100mW for R<1KW and 25mW for R>1KW. Standard tolerance is ±5%. not applicable

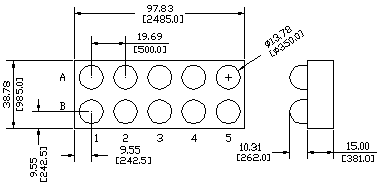

CASE LAYOUT PACKAGE PIN OUT
schematic
IN=A1,A2,A4,A5
OUT=B1,B2,B4,B5
GND=A3,B3
Vdd=2,7,10,15

STANDARD PRODUCTS ORDERING INFORMATION

STANDARD VALUES CUT OFF FREQUENCY PART MARKING
R(W) 10% C(pF) 10% fc @ 3dB (MHz) SW PART# RC CODE Tol 10%
50 43 74 SWT-CSP-S /500/430 -10%
100 39 41 SWT-CSP-S /101/390 -10%

SW PART # QUANTITY CSP U/P($) BARE DIE U/P($)
SWT-CSP-S/xxx/xxx-10%   5,000pc -   -BD
SWT-CSP-S/xxx/xxx-10% 10,000pc -   -BD
For standard RCD produts that are not available from stock, minimum order is 2500pc. List prices for other quantities are available on line through Instant Quote.
For products sold as bare tested die or known good die KGD, minimum order is 5000pc. Dice are 100% functional tested, visual inspected and shipped in antistatic waffle packs. For special die level KGD requirements, different packaging or custom configurations, contact sw_sales@semiconwell.com

INSTANT QUOTE
Semiconwell P/N Quantity E-mail


Delivery for packaged Resistor networks standard products is 4-6 weeks ARO. Certain items may be available from stock. For standard products available from stock, there is a minimum line item order of $250.0. Inventory is periodically updated. For 2500pc or larger orders, all surface mount packaged devices are shipped in tape on reel (T/R). For smaller quantities, it may vary. Samples are available only for customers that have issued firm orders pending qualification of product in a particular application. On line Orders have to be verified, accepted and acknowledged by Semiconwell sales department in writing before, becoming non cancelable binding contracts.

Semiconwell guarantees continuous supply and availability of any of it's standard products provided minimum order quantities are met.

SEMICONWELL has made every effort to have this information as accurate as possible. However, no responsibility is assumed by SEMICONWELL for its use, nor for any infringements of rights of third parties which may result from its use. SEMICONWELL reserves the right to revise the content or modify its product line without prior notice. SEMICONWELL products are not authorized for and should not be used within support systems which are intended for surgical implants into the body, to support or sustain life, in aircraft, space equipment, submarine, or nuclear facility applications without the specific written consent.
