SEMICONWELL
Integrated Passive Networks
  SMALL RC FILTER FOR USB INTERFACE
SWPIUSB



FEATURES
APPLICATIONS
SCHEMATIC
Smallest RC filter for USB interface
2 PI RC Filter circuits in a chip
Saving space and cost
Superior mountability with concave terminal
Firm solder joint
Self alignement of placement at reflow soldering
Information and amusement equipment containing USB interface
PDAs, notebook
Games
Flash memory modules

1,4,5,10 GND; 2,3 USB driver; 7,8 USB connector 2,4,6,8 & Exposed Pad to GND; 1,3 USB driver; 5,7 USB connector

SHORT PRODUCT APPLICATION NOTE
The SWPIUSB is a 2 channel EMI PI filter array offering a combination of 2 low-pass PI filter channels to reduce EMI/RFI emissions on USB interface port. Each EMI/RFI channel integrates a high quality pi-style filter (R-R-C) which provides greater than xxdB attenuation in the 800-2700 MHz range. These pi-style filters support bidirectional filtering, controlling EMI both to and from a data port connector. The SWPIUSB is particularly well suited for portable electronics (e.g., cellular telephones, PDAs, notebook computers, games, flash memory modules) because of its small package footprint and low weight.

SEMICONDUCTOR-THIN FILM MANUFACTURING PROCESS DESCRIPTION
Integrated passive networks are manufactured using advanced thin film technologies including ultra -stable and self passivating Tantalum Nitride resistors, gold interconnect metallization and reliable MNOS capacitors to achieve excellent uniformity, performance and reliability. Thin film resistor technology is the preferred solution for all applications that require low noise, long term stability and excellent performance at very high frequencies. Semiconwell employs proprietary thin film technologies for deposition of a wide range of sheet resistance films from 1W/sq to 10,000 W/sq. All Semiconwell's products are available in die form and as KGD, known good die and are ideal for high reliability hybrid and multi chip module applications. Besides thin film resistors, Semiconwell integrates capacitors, Schottky diodes, Zener diodes and transistors. Integrated passive and active networks are manufactured using Semiconwell's in house high reliability semiconductor manufacturing processes. All semiconductor devices employ precision doping via ion implantation, silicon nitride junction passivation, platinum silicided contacts and gold interconnect metallization for best performance and reliability. MNOS capacitors and Tantalum Nitride resistors are easily integrated with Schottky diodes to provide complete standard and custom RCD solutions. In die form, these products are ideal for hybrid and multi chip module applications. In packaged form, these products are the best solution where space and weight are a concern.

ABSOLUTE MAXIMUM RATINGS
Reverse voltage VR Continuous IF IFRM for tw<100ms Max Power dissipation
7V 100mA 200 mA (20%duty cycle) 100mW@70°C/channel

Stresses beyond listed absolute maximum ratings may cause permanent damage to the device.

ELECTRICAL CHARACTERISTICS
RESISTOR Resistance values 10W to 100kW
Resistance tolerances 1, 5, 10 %
T.C.R ±200 ppm/°C
Rated Power 63mW
Maximum Rated DC Voltage 25V
CAPACITOR Capacitance values (@25°C, 1KHz, 1Vrms) 10pF to 100pF
Capacitance Tolerance 20%
Capacitance Temperature Characteristics +20% -50%
(-25°C to +85°C)
Dissipation factor <3% (25°C, 1KHz, 1Vrms)
Rated Voltage 12V
Operating Temperature Range -25°C to +85°C


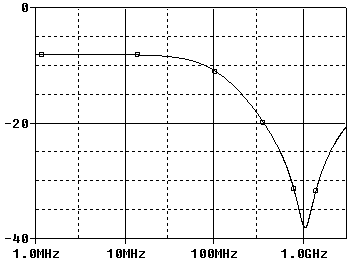

Output attenuation (dB vs. F, 1-3GHz)

PIN OUT
PIN NUMBER 10 PIN MLP 8 PIN MLP
1 VDD USB driver
2 USB driver GND
3 USB driver USB driver
4 VDD VDD
5 GND USB CONNECTOR
6 NC GND
7 USB CONNECTOR USB CONNECTOR
8 USB CONNECTOR VDD
9 NC -
10 GND -

GENERAL DIE INFORMATION
Substrate Thickness (mils) Die size (mils) Bonding pads Backside metal
SiO2 / Silicon 10±2 XX x YY ±3 4x4 mils, 3µm thick, 99.99% electroplated gold with a TiW barrier Au/Si compatible with eutectic and conductive epoxy die attach.
All Semiconwell products are available in die form for chip and wire hybrid circuits and multi chip modules applications. Typical delivery for standard die products is 3-4 weeks ARO. For Chip Scale Packaged (CSP) devices consult factory for an update on availability of certain products.

DIODES RESISTORS CAPACITORS
Schottky diodes offer basic ESD protection, with low forward voltage, low leakage and low power dissipation in OFF state. Schottky Diodes exhibit low junction capacitance CTand low on resistance RDON. Ultra stable TaN with low TCR <75ppm/°C typical. For Rsq<10W/sq and Rsq>500W/sq, resistive material is proprietary. Power rating/resistor max 100mW for R<1KW and 25mW for R>1KW. Standard tolerance is ±5%. Silicon nitride dielectric, MNOS capacitors exhibit high stability, low temperature coefficients, low leakage <10nA and high BV>50V.

DIE LAYOUT PACKAGE PIN OUT

STANDARD PRODUCTS ORDERING INFORMATION

R1(W) R2(KW) C(pF) R  CODE MLP-10 MLP8 BARE DIE-10
1.5 15 47 1P5/153/470 SWPIUSB/1P5/153/470-MLP10 SWPIUSB/1P5/153/470-MLP8 SWPIUSB/1P5/153/470-BD10
27 15 47 270/153/470 SWPIUSB/270/153/470-MLP10 SWPIUSB/270/153/470-MLP8 SWPIUSB/270/153/470-BD10

SW PART # QUANTITY MLP-10 U/P($) MLP-8 U/P($) BARE DIE-10 U/P($)
SWPIUSB/RCODE   5,000pc -MLP10   -MLP10   -BD10
SWPIUSB/RCODE 10,000pc -MLP10   -MLP10   -BD10
For products sold as bare tested die or known good die KGD, minimum order is 5000pc. Dice are 100% functional tested, visual inspected and shipped in antistatic waffle packs. For special die level KGD requirements, different packaging or custom configurations, contact sw_sales@semiconwell.com

  Semiconwell P/N Quantity E-mail
Receive Instant Quote


Delivery for packaged RCD standard products is 6-8 weeks ARO. Certain items may be available from stock. For standard products available from stock, there is a minimum line item order of $250.0. Inventory is periodically updated. For 2500pc or larger orders, all surface mount packaged devices are shipped in tape on reel (T/R). For smaller quantities, it may vary. Samples are available only for customers that have issued firm orders pending qualification of product in a particular application. On line Orders have to be verified, accepted and acknowledged by Semiconwell sales department in writing before, becoming non cancelable binding contracts.

Semiconwell guarantees continuous supply and availability of any of it's standard products provided minimum order quantities are met.

SEMICONWELL has made every effort to have this information as accurate as possible. However, no responsibility is assumed by SEMICONWELL for its use, nor for any infringements of rights of third parties which may result from its use. SEMICONWELL reserves the right to revise the content or modify its product line without prior notice. SEMICONWELL products are not authorized for and should not be used within support systems which are intended for surgical implants into the body, to support or sustain life, in aircraft, space equipment, submarine, or nuclear facility applications without the specific written consent.
