SEMICONWELL
Integrated Passive Networks
  6 CHANNEL EMI FILTER ARRAY WITH ESD PROTECTION
SWPIEMI1440-CSP



FEATURES
APPLICATIONS
SCHEMATIC
Six channels of Pi-style EMI filtering, each with ESD protection
Greater than 35dB attenuation over the 800MHz to 2.7GHz.
±30kV ESD protection (IEC 61000-4-2, contact discharge)
±30kV ESD protection on each channel (HBM)
15-bump, 0.4mm pitch, 2.360mm x 1.053mm footprint.Chip Scale Package(CSP) . Chip Scale Package features extremely low lead inductance for optimum filter and ESDperformance
LCD and Camera data lines in mobile handsets
EMI filtering for data ports in cell phones, PDAs or
notebook computers
I/O port protection for mobile handsets, notebook
computers, PDAs etc.
EMI filtering for LCD and chip-to-chip data lines in mobile electronic devices that use flexible PCB
interconnections

SHORT PRODUCT APPLICATION NOTE
SWPIEMI1440 is a low-pass filter array integrating six pi-style filters (C-R-C) that reduce EMI/RFI emissions while at the same time providing ESD protection. Each high quality filter provides more than 35dB attenuation in the 800-2700 MHz range. In addition, the SWPIEMI1440 provides a very high level of protection for sensitive electronic components that may be subject to electrostatic discharge (ESD). The input pins are designed and characterized to safely dissipate ESD strikes of 30kV, the maximum requirement of the IEC 61000-4-2 international standard. Using the MIL-STD-883 (Method 3015) specification for Human Body Model (HBM) ESD, the device provides protection for contact discharges to greater than 30kV. The SWPIEMI1440 is particularly well suited for portable electronics (e.g., cellular telephones, PDAs, notebook computers) because of its small package format and low weight.In particular, the SWPIEMI1440 is ideal for EMI filtering and protecting data and control lines for the I/O data ports, LCD display and camera interface in mobile handsets.SWPIEMI1440 is manufactured with a 0.40mm pitch and 0.25mm CSP solder ball to provide up to 28% board space savings versus competing CSP devices with 0.50mm pitch and 0.30mm CSP solder ball.

SEMICONDUCTOR-THIN FILM MANUFACTURING PROCESS DESCRIPTION
Integrated passive networks are manufactured using advanced thin film technologies including ultra -stable and self passivating Tantalum Nitride resistors, gold interconnect metallization and reliable MNOS capacitors to achieve excellent uniformity, performance and reliability. Thin film resistor technology is the preferred solution for all applications that require low noise, long term stability and excellent performance at very high frequencies. Semiconwell employs proprietary thin film technologies for deposition of a wide range of sheet resistance films from 1W/sq to 10,000 W/sq. All Semiconwell's products are available in die form and as KGD, known good die and are ideal for high reliability hybrid and multi chip module applications. Besides thin film resistors, Semiconwell integrates capacitors, Schottky diodes, Zener diodes and transistors. Integrated passive and active networks are manufactured using Semiconwell's in house high reliability semiconductor manufacturing processes. All semiconductor devices employ precision doping via ion implantation, silicon nitride junction passivation, platinum silicided contacts and gold interconnect metallization for best performance and reliability. MNOS capacitors and Tantalum Nitride resistors are easily integrated with Schottky diodes to provide complete standard and custom RCD solutions. In die form, these products are ideal for hybrid and multi chip module applications. In packaged form, these products are the best solution where space and weight are a concern.

ABSOLUTE MAXIMUM RATINGS
Reverse voltage VR Continuous IF IFRM for tw<100ms Max Power dissipation
7V 100mA 200 mA (20%duty cycle) 100mW@70°C/channel

Stresses beyond listed absolute maximum ratings may cause permanent damage to the device.

ELECTRICAL CHARACTERISTICS
PARAMETER VALUE UNITS
Storage Temperature Range
-65 to +150
°C
Operating Temperature Range
-40 to +85
°C
DC Power per Resistor
100
mW
DC Package Power Rating
500
mW
Resistance Tolerance
max.±20
%
Total Capacitance ,2.5V DC, ReverseBias, 1MHz, 30mVAC
min.48,typ.60,max.72
pF
Capacitance,C, 2.5V DC, ReverseBias, 1MHz, 30mVAC
min.24,typ.30,max.36
pF

Signal Voltage ,ILOAD = 10mA,Positive Clamp
Signal Voltage,ILOAD = -10mA,Negative Clamp

min.5.6 ; typ.6.8; max.9
min.-1.5;typ.-0.8;max.-0.4


V
V

In-system ESD Withstand Voltage,Notes 2,4 and 5
a) Human Body Model, MIL-STD-883,Method 3015
b) Contact Discharge per IEC 61000-4-2 Level 4


min.±30

min.±30


kV
kV

Dynamic Resistance
Positive
Negative

typ. 2.3
typ. 0.9

W
W

Cut-off frequency ; R = 100W, C = 30pF,Note 6
typ.60
MHz
Diode Standoff Voltage,IDIODE = 10µA
typ.6
V
Diode Leakage Current (reverse bias),VDIODE = 3.3V
typ.01,max.1
µA

Note 1: TA =25°C unless otherwise specified
Note 2: ESD applied to input and output pins with respect to GND, one at a time.

Note 3: Clamping voltage is measured at the opposite side of the EMI filter to the ESD pin.

Note 4: Unused pins are left open

Note 5: The parameters are guaranteed by design and characterization.
Note 6: ZSOURCE=50
W, ZLOAD=50W.


GENERAL DIE INFORMATION
Substrate Thickness (mils) Die size (mils) Bonding pads Backside metal
SiO2 / Silicon 15±2 92.9 x 41.5±3 0.25 DIA.
63/37 Sn/Pb (Eutectic)or 96.8/2.6/0.6 Sn/Ag/Cu (Lead-free)SOLDER BUMPS
Au/Si compatible with eutectic and conductive epoxy die attach.
All Semiconwell products are available in die form for chip and wire hybrid circuits and multi chip modules applications. Typical delivery for standard die products is 3-4 weeks ARO. For Chip Scale Packaged (CSP) devices consult factory for an update on availability of certain products.

DIODES RESISTORS CAPACITORS
The diodes offer basic ESD protection, with low forward voltage, low leakage and low power dissipation in OFF state.Diodes exhibit low junction capacitance CTand low on resistance RDON. Ultra stable TaN with low TCR <75ppm/°C typical. For Rsq<10W/sq and Rsq>500W/sq, resistive material is proprietary. Power rating/resistor max 100mW for R<1KW and 25mW for R>1KW. Standard tolerance is ±5%. Silicon nitride dielectric, MNOS capacitors exhibit high stability, low temperature coefficients, low leakage <10nA and high BV>50V.

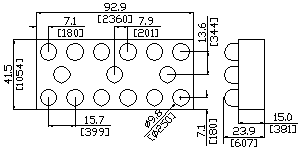

DIE LAYOUT PACKAGE PIN OUT

STANDARD PRODUCTS ORDERING INFORMATION

R(W) C(pF)@ 2.5V DC,1MHz CSP-15
100 30 SWPIEMI1440-15CSP

SW PART # QUANTITY CSP-15 U/P($) BARE DIE U/P($)
SWPIEMI1440   5,000pc -15CSP   -15BD
SWPIEMI1440 10,000pc -15CSP   -15BD
For products sold as bare tested die or known good die KGD, minimum order is 5000pc. Dice are 100% functional tested, visual inspected and shipped in antistatic waffle packs. For special die level KGD requirements, different packaging or custom configurations, contact sw_sales@semiconwell.com

  Semiconwell P/N Quantity E-mail
Receive Instant Quote


Delivery for packaged RCD standard products is 6-8 weeks ARO. Certain items may be available from stock. For standard products available from stock, there is a minimum line item order of $250.0. Inventory is periodically updated. For 2500pc or larger orders, all surface mount packaged devices are shipped in tape on reel (T/R). For smaller quantities, it may vary. Samples are available only for customers that have issued firm orders pending qualification of product in a particular application. On line Orders have to be verified, accepted and acknowledged by Semiconwell sales department in writing before, becoming non cancelable binding contracts.

Semiconwell guarantees continuous supply and availability of any of it's standard products provided minimum order quantities are met.
