SEMICONWELL
Integrated Passive Networks
  THIN FILM DIFFERENTIAL TERMINATION RESISTOR NETWORKS
SWRN1646



FEATURES
APPLICATIONS

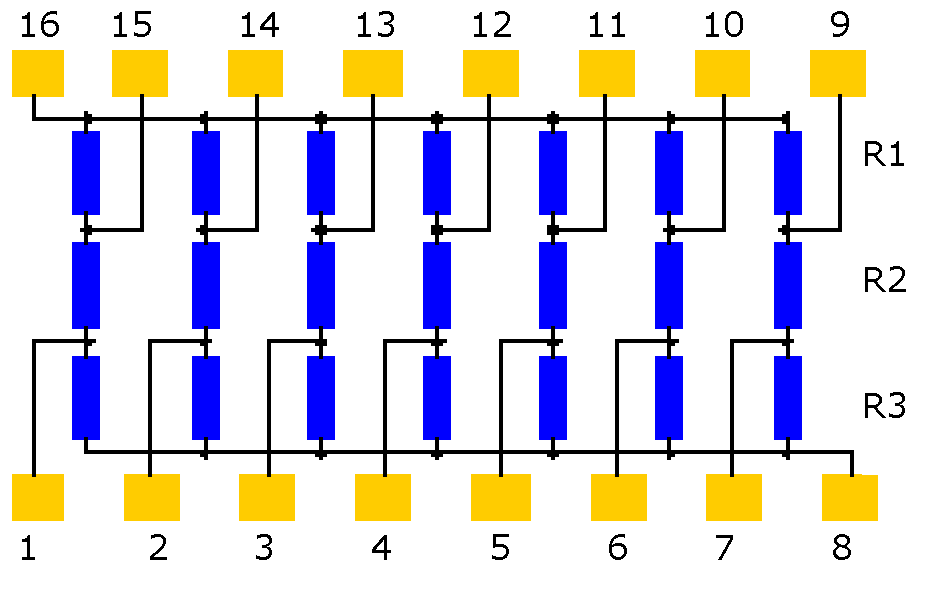

SCHEMATIC
0.190" [4.83mm] maximum seated height
Rugged, molded case construction
Low temperature coefficient ±250 ppm/°C
Compatible with automatic insertion equipment
Thin film resistive elements
Reduces PC board space and reduces total assembly costs
SCSI- Bus signal terminator

SHORT PRODUCT APPLICATION NOTE
The SWRN1646 is a high performance Integrated Device designed to eliminate trensmission line effects on high-speed lines on a SCSI (Small Computer Systems Interface). SCSI is a bus interface covered by ANSI standard that allows for an input/output bus to connect small computers with a variety of peripheral devices. Proper resistor termination requires a resistor whose value closely matches the characteristic impedance of the transmisision line. Thin film networks offer significant advantage over thick film processes in terms of tighter absolute and ratio tolerances, lower noise, lower Temperature Coefficient of Resistance, greater stability. They offer superior high frequency performance with minimal parasitic inductance and capacitance. Integrated thin film networks also offer the benefits of board space savings, reduced assembly costs, and increased reliability with fewer components.

SEMICONDUCTOR-THIN FILM MANUFACTURING PROCESS DESCRIPTION
Integrated passive networks are manufactured using advanced thin film technologies including ultra -stable and self passivating Tantalum Nitride resistors, gold interconnect metallization and reliable MNOS capacitors to achieve excellent uniformity, performance and reliability. Thin film resistor technology is the preferred solution for all applications that require low noise, long term stability and excellent performance at very high frequencies. Semiconwell employs proprietary thin film technologies for deposition of a wide range of sheet resistance films from 1 Ω/sq to 10,000 Ω/sq. All Semiconwell's products are available in die form and as KGD, known good die and are ideal for high reliability hybrid and multi chip module applications. Besides thin film resistors, Semiconwell integrates capacitors, Schottky diodes, Zener diodes and transistors. Integrated passive and active networks are manufactured using Semiconwell's in house high reliability semiconductor manufacturing processes. All semiconductor devices employ precision doping via ion implantation, silicon nitride junction passivation, platinum silicided contacts and gold interconnect metallization for best performance and reliability. MNOS capacitors and Tantalum Nitride resistors are easily integrated with Schottky diodes to provide complete standard and custom RCD solutions. In die form, these products are ideal for hybrid and multi chip module applications. In packaged form, these products are the best solution where space and weight are a concern.

RESISTOR SPECIFICATIONS
Capacitance [pF] Tolerance q [%] Power Rating [mW]
<5pF 5 125mW@70C

Stresses beyond listed absolute maximum ratings may cause permanent damage to the device.

PARAMETER
VALUE
UNITS
Resistors standard values
R1
R2
R3
330
150
330
Ω
Ω
Ω
Operating Temperature Range
-55 to 125
C
Temperature Coefficient of Resistance
100
ppm/C
Noise, (MIL-STD-202, Method 308)
max. -25
dB

GENERAL DIE INFORMATION
Substrate Thickness (mils) Die size (mils) Bonding pads Backside metal
SiO2 / Silicon 102 90 x 60 3 4x4 mils, 3mm thick, 99.99% electroplated gold with a TiW barrier Au/Si compatible with eutectic and conductive epoxy die attach.
All Semiconwell products are available in die form for chip and wire hybrid circuits and multi chip modules applications. Typical delivery for standard die products is 3-4 weeks ARO. For Chip Scale Packaged (CSP) devices consult factory for an update on availability of certain products.

CONDUCTORS RESISTORS BACKSIDE METAL
The bonding pads of the resistors are 3m thick, 99.99% electroplated gold with a TiW barrier that withstands 30 min at 400C in air without loss of adhesion. Resistive material is ultra stable TaN with low TCR <75ppm/C typical. For Rsq<10Ω/sq and Rsq>500Ω/sq, the resistive material is proprietary. Power rating/resistor max 100mW for R<1KΩ and 25mW for R>1KΩ. Standard tolerance is 5%. Backside of the die is metallized with standard Si/Au compatible with eutectic and epoxy die attach. Custom metallizations are available upon special request for die products only.

DIE LAYOUT PACKAGE PIN OUT
Vin=9,10,11,12,13,14,15
Vss=2,3,4,5,6,7
VCC=1,16
GND=8

STANDARD PRODUCTS ORDERING INFORMATION

SEMICONWELL P/N PREFIX PACKAGE SUFFIX
R1(Ω) R2(Ω) R3(Ω) R CODE P/N SOIC QSOP TQSOP TSSOP PDIP BARE DIE
180 270 820 180/270/820 SWRN1646/R180/R270/R820 -16SO -16QS -16TQS -16TS -16DP -BD
10 to 10M 10 to 10M 10 to 10M /XXX/XXX/XXX SWRN1646/XXX/XXX -16SO -16QS -16TQS -16TS -16DP -BD

SW PART # QUANTITY SOIC U/P($) QSOP U/P($) TQSOP U/P($) TSSOP U/P($) PDIP U/P($) DIE U/P($)
SWRN1646/RCODE-10%   5,000pc -16SO   -16QS   -16TQS   -16TS   -16DP   -BD
SWRN1646/RCODE-10% 10,000pc -16SO   -16QS   -16TQS   -16TS   -16DP   -BD
SWRN1646/RCODE-5%      5,000pc -16SO   -16QS   -16TQS   -16TS   -16DP   -BD
SWRN1646/RCODE-5%    10,000pc -16SO   -16QS   -16TQS   -16TS   -16DP   -BD
SWRN1646/RCODE-1%      5,000pc -16SO   -16QS   -16TQS   -16TS   -16DP   -BD
SWRN1646/RCODE-1%    10,000pc -16SO   -16QS   -16TQS   -16TS   -16DP   -BD
List prices are for standard products, available from stock. List prices for other quantities and tolerances are available on line through Instant Quote. For standard products available from stock, there is a minimum line item order. For custom products please inquire by contacting SEMICONWELL technical sales. No rights can be derived from pricing information provided on this website. Such information is indicative only, is showed for budgetary use only and subject to change by SEMICONWELL at any time and without notice.
For custom products sold as bare tested die or known good die KGD, minimum order is 5000pc. Dice are 100% functional tested, visual inspected and shipped in antistatic waffle packs. For special die level KGD requirements, different packaging or custom configurations, contact sw_sales@semiconwell.com
CUSTOM PRODUCTS ORDERING INFORMATION - P/N BUILDER

R1 R1 multiplier R2 R2 multiplier R3 R3 multiplier Tolerance Package
Find part #

INSTANT QUOTE
Semiconwell P/N Quantity E-mail


Delivery for packaged Resistor networks standard products is 4-6 weeks ARO. Certain items may be available from stock. For standard products available from stock, there is a minimum line item order of $250.0. Inventory is periodically updated. For 2500pc or larger orders, all surface mount packaged devices are shipped in tape on reel (T/R). For smaller quantities, it may vary. Samples are available only for customers that have issued firm orders pending qualification of product in a particular application. On line Orders have to be verified, accepted and acknowledged by Semiconwell sales department in writing before, becoming non cancelable binding contracts.

Semiconwell guarantees continuous supply and availability of any of it's standard products provided minimum order quantities are met.

SEMICONWELL has made every effort to have this information as accurate as possible. However, no responsibility is assumed by SEMICONWELL for its use, nor for any infringements of rights of third parties which may result from its use. SEMICONWELL reserves the right to revise the content or modify its product line without prior notice. SEMICONWELL products are not authorized for and should not be used within support systems which are intended for surgical implants into the body, to support or sustain life, in aircraft, space equipment, submarine, or nuclear facility applications without the specific written consent.
