CHIP SCALE 0603 PRECISION THIN FILM 4 ISOLATED RESISTORS NETWORK SWFCRN312-CSP FEATURES Standard 0603 Format SMD chips Absolute tolerance
0.1% Temperature Coeficient (TCR) of 25 ppm/°C/ Silicon substrate APPLICATIONS Voltage dividers Current sensing Current limiting
Precision gain setting Pull up/Pull down Terminations SHORT PRODUCT APPLICATION NOTE The SWFCRN312 resistors offer a high degree of stability and low noise
as well as the proven reliability characteristics of Tantalum Nitride. The SWFCRN312 Series offers the advantages of a CSP
( Chip Scale Package). The devices are built on silicon with solder bumps for direct placement onto printed circuit boards.
They are compatible with 0603 footprint. SEMICONDUCTOR-THIN FILM MANUFACTURING PROCESS DESCRIPTION Integrated passive networks
are manufactured using advanced thin film technologies including ultrastable and self passivating Tantalum Nitride resistors,
gold interconnect metallization and reliable MNOS capacitors to achieve excellent uniformity, performance and reliability.
Thin film resistor technology is the preferred solution for all applications that require low noise, long term stability and
excellent performance at very high frequencies. Semiconwell employs proprietary thin film technologies for deposition of a
wide range of sheet resistance films from 1 W/sq to 10,000 W/sq. All Semiconwell's products are available in die form and
as KGD, known good die and are ideal for high reliability hybrid and multi chip module applications. Besides thin film resistors,
Semiconwell integrates capacitors, Schottky diodes, Zener diodes and transistors. Integrated passive and active networks are
manufactured using Semiconwell's in house high reliability semiconductor manufacturing processes. All semiconductor devices
employ precision doping via ion implantation, silicon nitride junction passivation, platinum silicided contacts and gold interconnect
metallization for best performance and reliability. MNOS capacitors and Tantalum Nitride resistors are easily integrated with
Schottky diodes to provide complete standard and custom RCD solutions. In die form, these products are ideal for hybrid and
multi chip module applications. In packaged form, these products are the best solution where space and weight are a concern.
RESISTOR SPECIFICATIONS Capacitance [pF] Tolerance q [%] Power Rating [mW] <0.20pF 1, 5, 10 200 mW@70°C Stresses beyond
listed absolute maximum ratings may cause permanent damage to the device. ELECTRICAL CHARACTERISTICS PARAMETER VALUE UNITS
Resistor Range 40 ohms to 150 Kohms Resistor Tolerance min ±0.1 % Operating Voltage max. 100 Vdc MaximumResistor Power,at 70°C 0.2
W Temperature Coefficient of Resistance ±100 ppm/°C Storage Temperature Range -65°C to +150 °C Operating Temperature Range

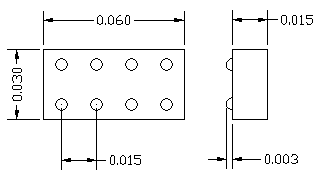

-55°C to +125 °C GENERAL DIE INFORMATION Substrate Thickness (mils) Die size (mils) Bonding pads Backside metal Si 10±2 60x30±5
4x4 mils, 3mm thick, 99.99% electroplated gold with a TiW barrier Au/Si compatible with eutectic and conductive epoxy die
attach. All Semiconwell products are available in die form for chip and wire hybrid circuits and multi chip modules applications.
Typical delivery for standard die products is 3-4 weeks ARO. For Chip Scale Packaged (CSP) devices consult factory for an
update on availability of certain products. CONDUCTORS RESISTORS BACKSIDE METAL Bumps Height 5 mils (±1 mil) Pad Size 15x44.6
mils Resistive material is ultra stable TaN with low TCR <75ppm/°C typical. For Rsq<10W/sq and Rsq>500W/sq, the resistive
material is proprietary. Power rating/resistor max 100mW for R<1KW and 25mW for R>1KW. Standard tolerance is ±5%. STANDARD
PRODUCTS ORDERING INFORMATION R R multiplier TOLERANCE R value 10 11 12 13 15 16 18 20 22 24 27 30 33 36 39 43 47 51 56 62
68 75 82 91 R multiplier 1 10 100 1,000 10,000 -5% -2% -1% -0.5% -0.1% SW PART # QUANTITY CSP U/P($) SWFCRN312/RCODE-1% 5,000pc
-CSP SWFCRN312/RCODE-1% 10,000pc -CSP For custom products sold as bare
tested die or known good die KGD, minimum order is 5000pc. Dice are 100% functional tested, visual inspected and shipped in
antistatic waffle packs. For special die level KGD requirements, different packaging or custom configurations, contact email@example.com
INSTANT QUOTE Semiconwell P/N Quantity E-mail Delivery for packaged Resistor networks standard products is 4-6 weeks ARO.
Certain items may be available from stock. For standard products available from stock, there is a minimum line item order
of $250.0. Inventory is periodically updated. For 2500pc or larger orders, all surface mount packaged devices are shipped
in tape on reel (T/R). For smaller quantities, it may vary. Samples are available only for customers that have issued firm
orders pending qualification of product in a particular application. On line Orders have to be verified, accepted and acknowledged
by Semiconwell sales department in writing before, becoming non cancelable binding contracts. Semiconwell guarantees continuous
supply and availability of any of it's standard products provided minimum order quantities are met. SEMICONWELL has made every
effort to have this information as accurate as possible. However, no responsibility is assumed by SEMICONWELL for its use,
nor for any infringements of rights of third parties which may result from its use. SEMICONWELL reserves the right to revise
the content or modify its product line without prior notice. SEMICONWELL products are not authorized for and should not be
used within support systems which are intended for surgical implants into the body, to support or sustain life, in aircraft,
space equipment, submarine, or nuclear facility applications without the specific written consent.
